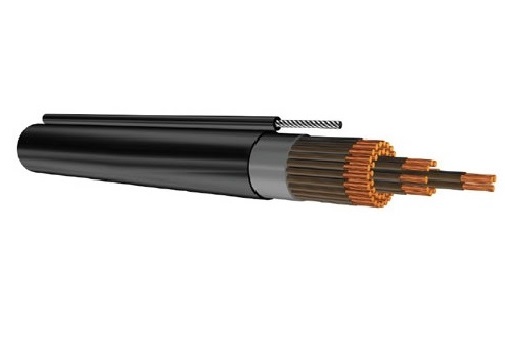

PE insulated, PE sheathed, telephone cable, A2Y(L)2Y-T
Application:
These types of cables are principally suitable for installation in overhead lines so that the messenger part of the cables is fixed with a clamp installed on a mast.
Standard:
TCI specification
Construction:
Bare copper, solid and annealed, with smooth and uniform surface.
PE insulation type III, class B, category 4 or 5 & grade E8 ASTM D 1248.
Polyester tape.
Aluminum foil.
Suspension strand of galvanized steel wires as messenger.
PE sheath type III, class C, category 4 or 5 & grade J3 ASTM D 1248
General specification:
Working temperature: Max. 70°C.
Code designation: A2Y(L)2Y-T.
