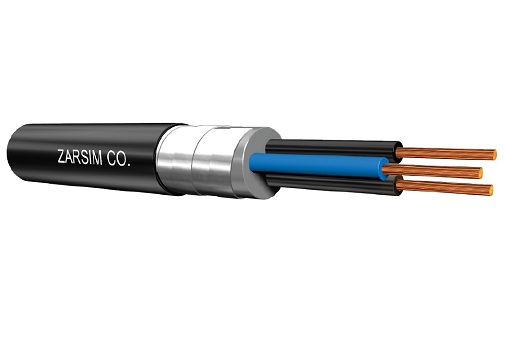

CU/XLPE/PVC/GSTA/PVC
Application:
These cables can be used indoor or outdoor in cable ducts, cable trays,
conduits or underground locations under mechanical stress in power and
switching stations, local distribution systems, industrial plants and commercial buildings.
Standard:
IEC 60502-1
ISIRI 3569-1
Construction:
Plain annealed copper class 1&2.
XLPE insulation.
Cores twisted together, if necessary in concentric layers.
Extruded PVC compatible with the operating temperature of the conductor.
Galvanized steel tape armour.
PVC sheath, type ST2.
General specification:
Rated voltage: 0.6/1kV
Working temperature: Max 90°C
Code designation: N2XBY
