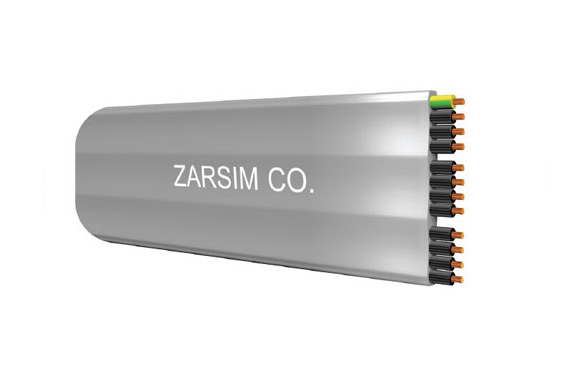

PVC insulated, PVC sheathed, extra flexible flat cable, up to 450/750V
Application:
Used mainly as trailing cable for crane and conveyer system, floor conveyer system, moving machine parts, lift and hoist installation and shelf control unit.
Minimum bending radius: 10 time of thickness of cable.
Resistant to oil.
Standard:
ISIRI (607)71f
IEC (60227)71f
BS EN 50214
Construction:
Annealed stranded copper conductor, class 5.
PVC insulation, type D.
Cores laid parallel.
PVC sheath, type ST5.
General specification:
Working temperature: Max 70°C
Harmonized code designation:
H05VVH6-F (300/500V), H07VVH6-F (450/750V)
