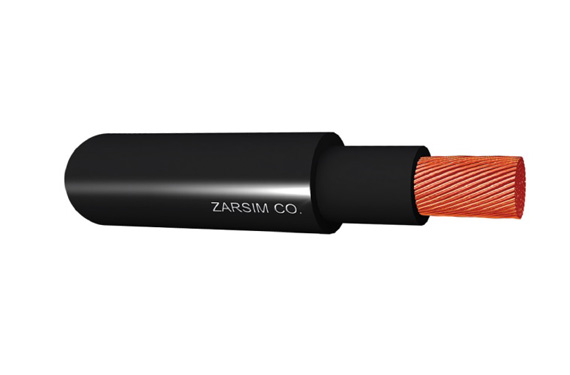

CU/PVC/PVC
:Application
.For supplying electrical energy in open air, underground, water, indoors, cable ducts, power stations, etc., where mechanical damages are not to be expected
:Standard
VDE 0271
IEC 60502-1
ISIRI 3569-1
:Construction
.Plain annealed copper conductor, class 1&2
.PVC insulation, type A
.Cores twisted together
.PVC inner covering applicable to cables 16mm2 and above
.PVC sheath, type ST1
:General specification
Rated voltage: 0.6/1kV
Working temperature: Max 70°C
Code designation: NYY
