Cu/MGT/XLPE/BED/CWF/HF
Application:
Used in the ships for alarm, control, general power, emergency and critical systems, where protection is required. Also can be used for indoor and outdoor applications.
Standard:
IEC 60092-353 Design guidelines
IEC 60228 Conductor
IEC 60092-360 Insulation & sheath
IEC 60332-1-2 Flame retardant properties
IEC 60332-3-22 Flame retardant properties
IEC 60331-21 Fire resistant properties
IEC 60754-1,2 Halogen free properties
IEC 61034-1,2 Smoke emission properties

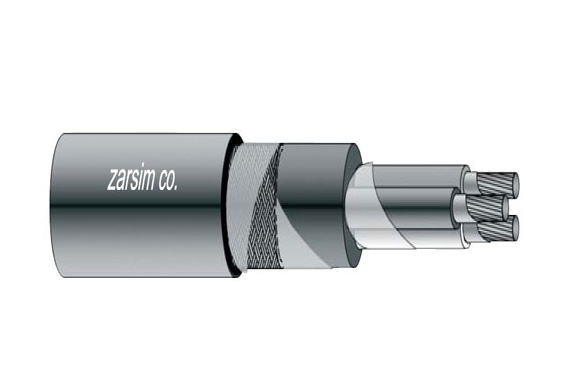

Construction:
Conductor: Plain or tinned annealed copper, IEC 60228 class 2 or class 5.
Insulation: Mica tape + halogen free cross-linked polyethylene XLPE, IEC 60092-360.
Bedding: Flame retardant halogen free polyolefin compound, extruded or lapped
Armour: Plain or tinned copper wire braid
Outer sheath: Flame retardant halogen free polyolefin compound, SHF1,IEC 60092-360
Core Identification:
1 core Black
2 cores Blue - Brown
3 cores Black - Brown - Grey
4 cores Black - Blue - Brown - Grey
5 cores Black - Blue - Brown - Grey - Black
6 cores and more White with black numbers
with yellow/green (optional):
2 cores + earth (3G) Yellow/green - Blue - Brown
3 cores + earth (3G) Yellow/green - Black - Brown - Grey
4 cores + earth (3G) Yellow/green - Black - Blue - Brown - Grey
